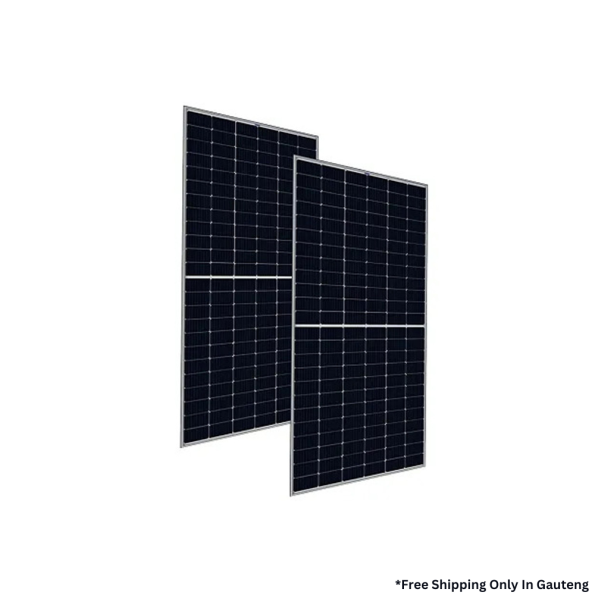

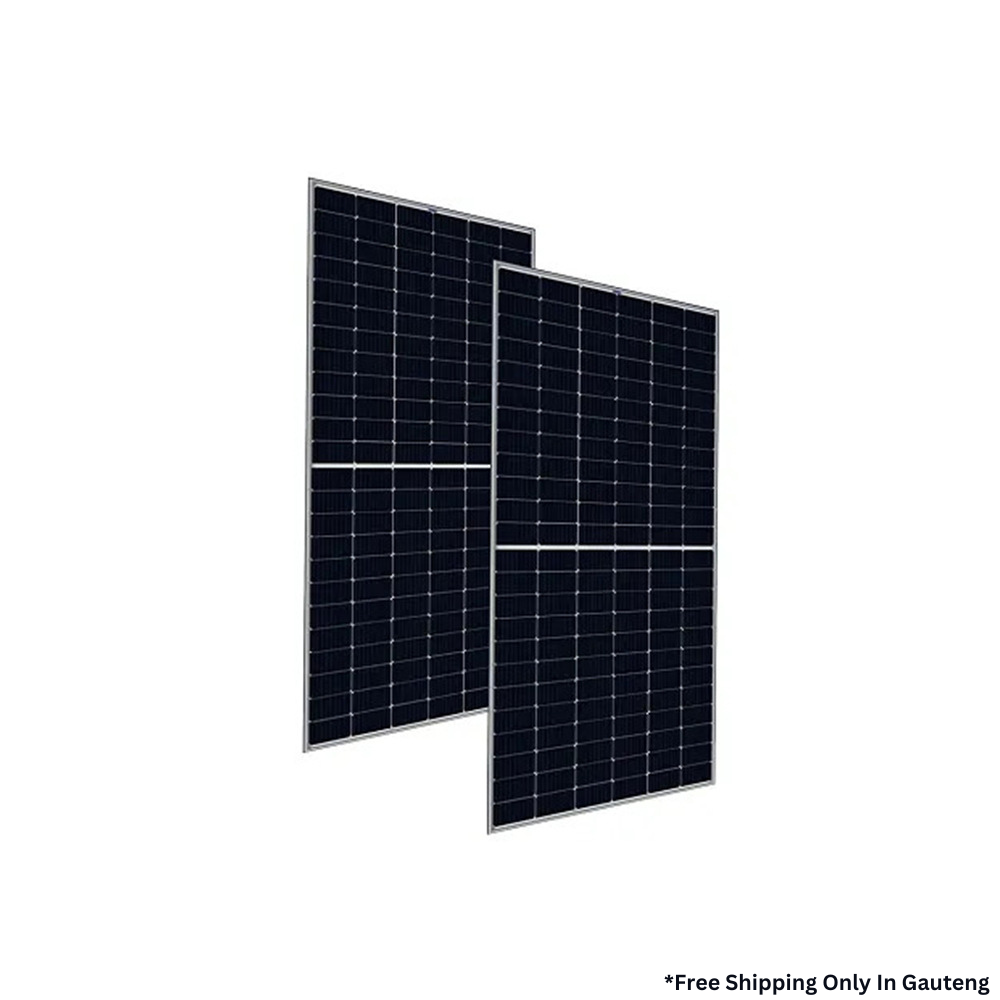

Ultra-Power 450W Mono PV Solar Panel
The Ultra-Power 450W Mono PV Solar Panel is a superior-quality monocrystalline solar panel with 144 half-cells and a module efficiency of up to 21.51. The panels are built with advanced technology to provide maximum efficiency and output, allowing you to get the most out of your solar energy system. With its high-temperature coefficient, you can be sure of reliable and dependable power generation. This panel type is ideal for both residential and commercial use, providing a great return on your investment. With its superior design and robust construction, you can be sure of reliable performance. Invest in an Ultra-Power 450W Mono PV Solar Panel and start producing clean, renewable energy today!
R1549,00 Retail Price
High-Efficiency Solar Panels – Only R1,549.00 Per Solar Panel
Harness the power of the sun with our premium monocrystalline solar panels, designed for exceptional performance and long-term durability. Each panel features 144 half-cut cells and boasts a module efficiency of up to 21.51%, delivering maximum power output even under challenging conditions.
Product Features
- Monocrystalline
- 144 Half-cell
- Module efficiency up to 21.51
- 12-year guarantee on product material
- 25-year linear Power output warranty
Product Specifications
- Electrical Data (STC) PV DRAWINGS Model Type YH430W-36MH YH440W-36MH YH450W-36MH:
- Peak Power(Pmax) 430.00 440.00 450.00
- Maximum Power Voltage(Vmp) 40.70 41.10 41.50
- Maximum Power Current(Imp) 10.57 10.71 10.85
- Open Circuit Voltage(Voc) 48.5±3% 48.9±3% 49.3±3%
- Short Circuit Current(Isc) 11.31±3% 11.46±3% 11.6±3%
- Module Efficiency(?) 19.78 20.24 20.70
- Electrical Data (NOCT):
- Peak Power(Pmax) 321.10 328.60 336.10
- Maximum Power Voltage(Vmp) 37.29 38.30 38.60
- Maximum Power Current(Imp) 8.47 8.59 8.70
- Open Circuit Voltage(Voc) 45.5±3% 45.8±3% 46.2±3%
- Short Circuit Current(Isc) 9.15±3% 9.27±3% 9.38±3%
- * NOCT: irradiance 800 W/m2, AM 1.5G, ambient temperature 20°C, wind speed 1 m
- Temperature & Maximum Rating:
- Maximum System Voltage(V) 1500V
- Maximum Series Fuse Rating(A) 20A
- Power Tolerance 0~+3W
- Pmax Temperature Coefficients(W/°C) -0.350%
- Voc Temperature Coefficients(V/°C) -0.270%
- Isc Temperature Coefficients(A/°C) +0.048%
- NOCT Nominal Operating Cell Temperature(°C) 45±2%
- Operating and Storage Temperature(°C) -40~+85

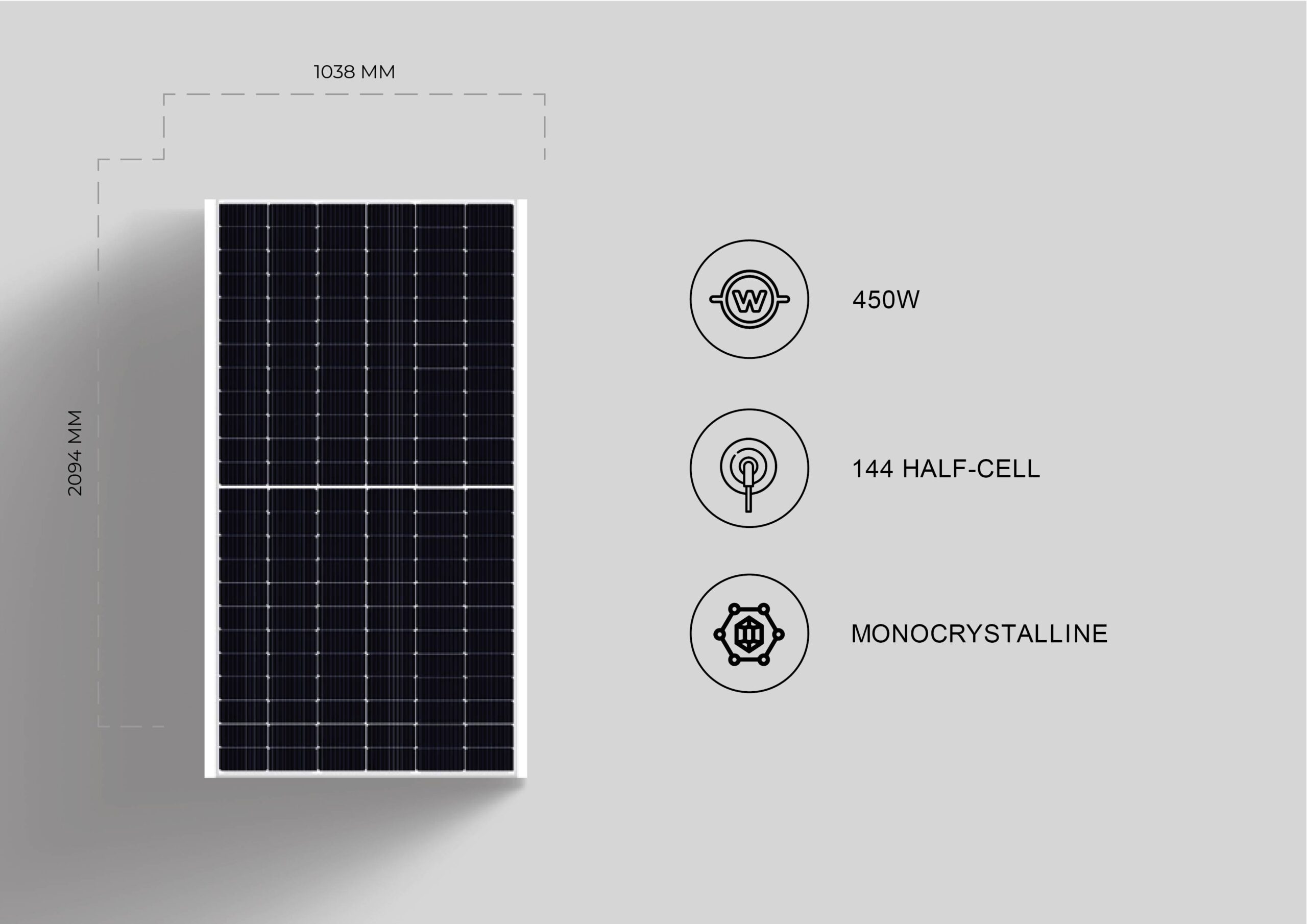

- Mechanical Characteristics:
- Cell Type 16683 Mono
- No. of Cells 144(6×12)2
- Dimensions 2094103835mm IV CURVE
- Weight 22.82kg Front Glass 3.2mm high transmission, low iron, tempered glass
- Frame Anodized Aluminium Alloy
- Junction box IP67/IP68 3 diodes
- Output cables 4mm² cable 30cm+mc4
- Max Wind Load/Snow Load 2400Pa/5400Pa
Discover more essential alternative energy solutions at New Spirit.
Free Delivery only available in Gauteng
| Weight | 24 kg |
|---|---|
| Dimensions | 103,8 × 3,5 × 209,4 cm |
