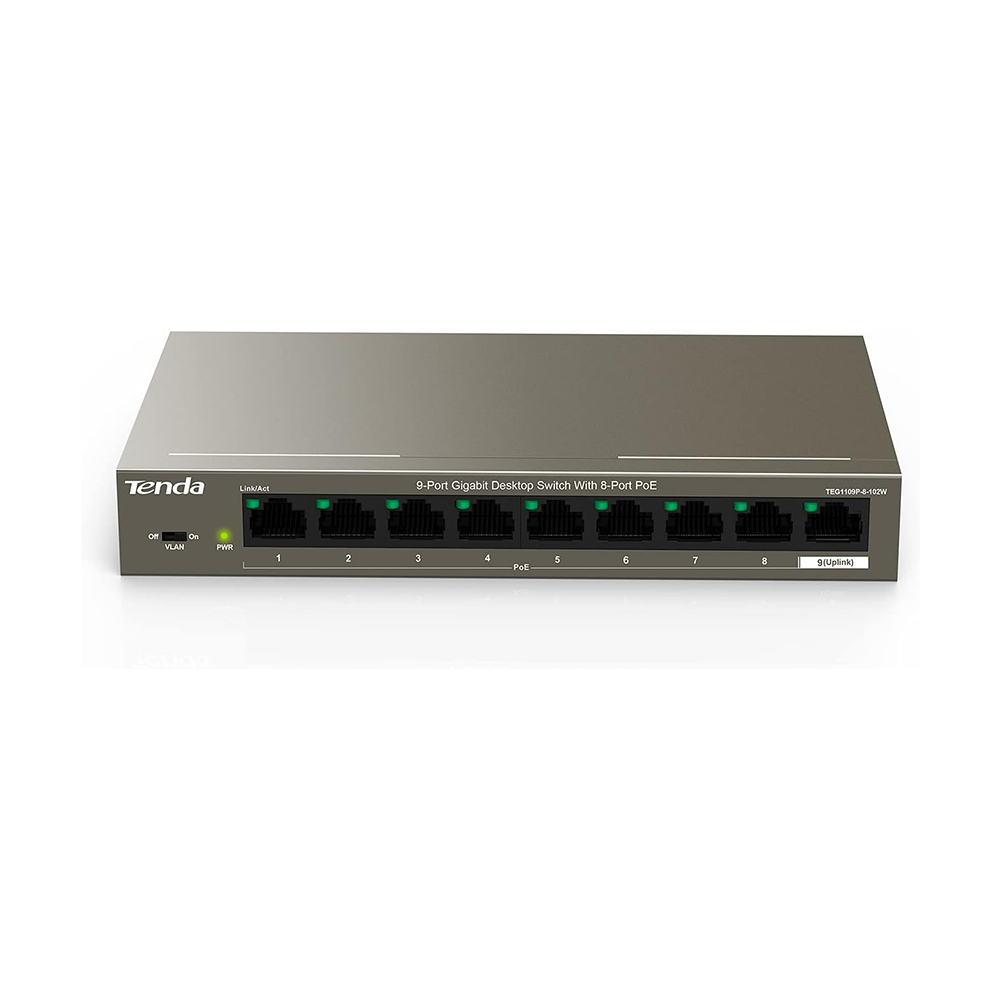

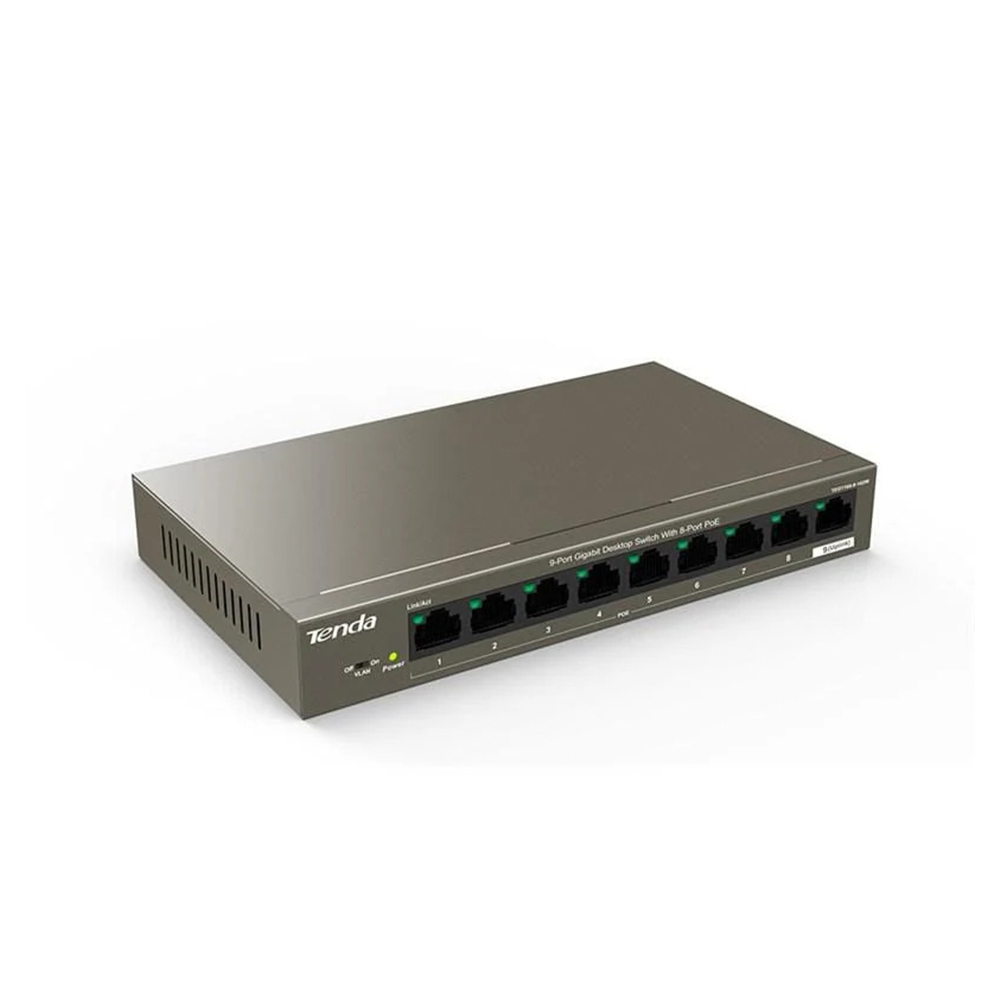

Tenda 9-Port Gigabit Desktop Switch with 8-Port PoE – TEG1109P-8-102W
The Tenda TEG1109P-8-102W is a gigabit unmanaged lightning protection switch specifically developed for building Gigabit WLAN and HD camera monitor networks. With high-performance access, 9 x 10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proofing on all ports and full support for MDI/MDIX and wired speed. PoE ports support IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power devices automatically. Through conventional Cat 5e twisted-pair cables, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, a flexible extended network can be easily configured without being limited by power line layouts. And with a plug and play design, the Tenda TEG1109P-8-102W can enavle SMB’s, hotels, shopping malls, and schools to build a high-security and reliable network of wireless cover and HD monitoring.
R2199,00 Retail Price
Plug & Play
8 port PoE+ switch requires no configuration or software, supports both desktop and wall mounting. Tenda TEG1109P-8-102W is your perfect 8 port PoE switch Gigabit choice
Port Configuration
PoE passthrough switch equipped with 9 10/ 100/ 1000 Mbps base-TX RJ45 ports, with 1 Uplink Port and 8 PoE+ ports, which are IEEE802.3af and IEEE802.3at compliant
92W Poe power Supply
PoE powered switch delivers a combined PoE power output of 92W and up to 30W per port, to supply power and exchange data to WiFi 6 Access Points, IP Cameras, IP Phone, HD Security etc.
One Key VLAN
With VLAN mode enabled, PoE+ ports 1-8 will isolate themselves respectively, while maintaining communication with the 9th port, to protect you from broadcast-storms and DHCP spoofing
Extend Mode

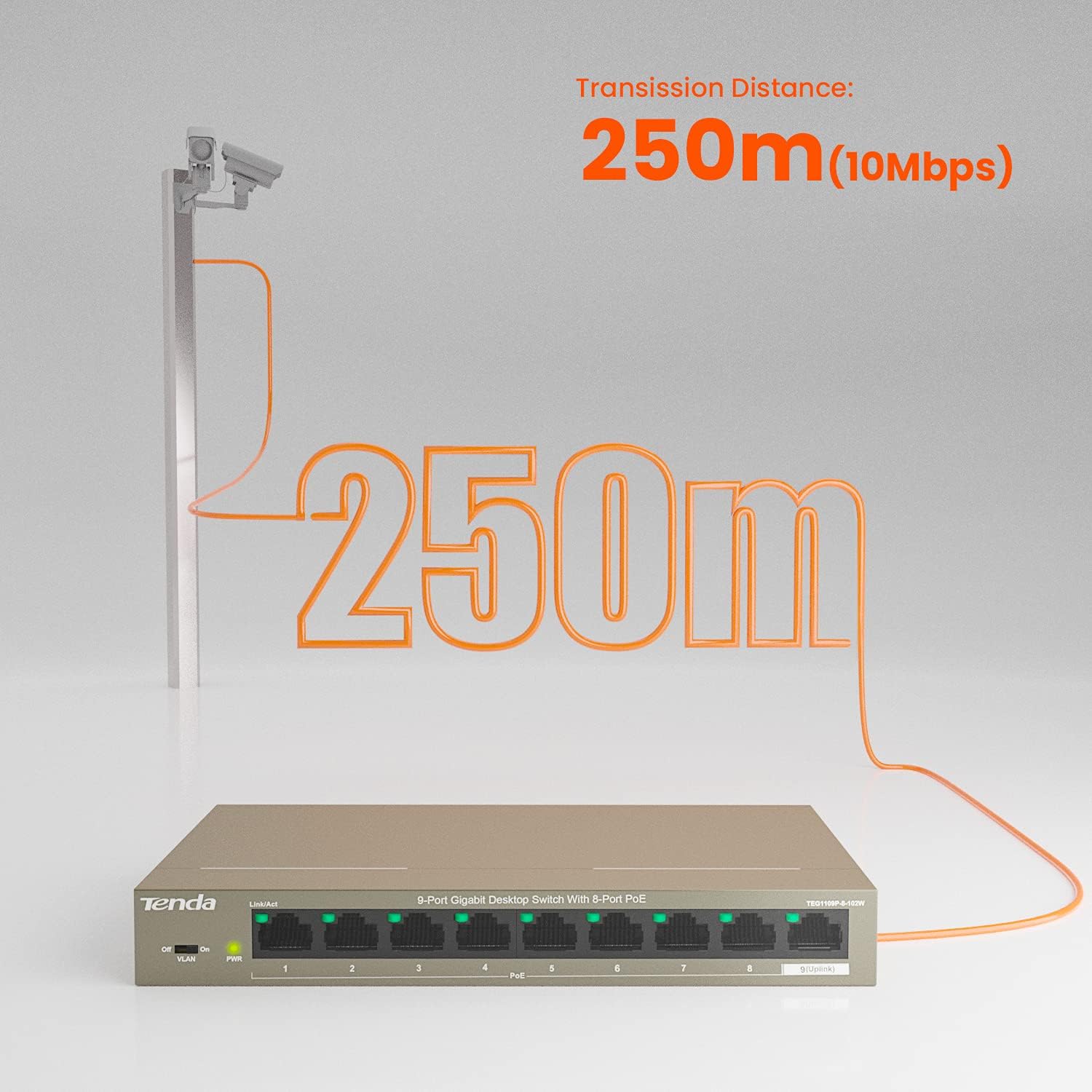

Up to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system (100m-200m speed will be downgraded to 10 Mbps)
Smart POE power Management
PoE switch 8 port equipped with an intelligent power management chip, when the powered device exceeds the rated power (92W) of the PoE switch, the low priority ports are automatically powered off, avoiding equipment overrun and extending equipment life
Specifications
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| MTBF | ≥50, 000 hours(about 5 years) |
| Indicator | Link/Act, Power |
| exchange capacity | 18 Gbps |
| Packet Forwarding Rate | 13.39Mpps |
| Fixed Port | 8 10/100/1000Mbps RJ45 Ports(Data/PoE) |
| 1 10/100/1000Mbps RJ45 Ports(Data) | |
| (Auto Negotiation/Auto MDI/MDIX) | |
| Capacity | Wire-speed forwarding: Support |
| Forwarding mode: Store-forward and cut-through | |
| Mac Address Table:16K | |
| PoE Supply | Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W), PoE power type is end-span(12+, 36- line pair) |
| Dimension | 177.5mm*104mm*26mm(W x D x H) |
| Input Voltage | AC: 100-240V~ 50/60Hz |
| DC: 51V /2.0A (Power Adapter Output ) | |
| Power Consumption | in full configuration: <102W |
| PoE Power Supply: <92W | |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Certification | FCC, CE, ROHS, CCC |
