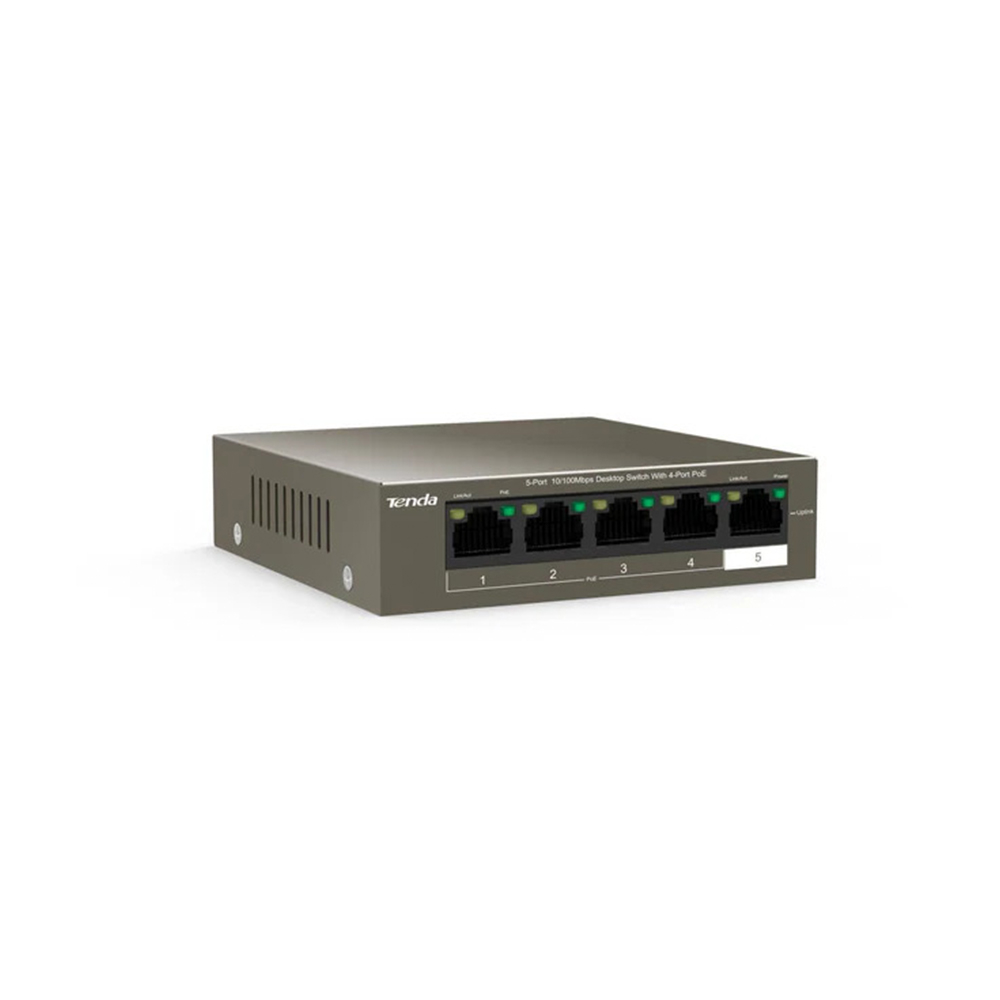

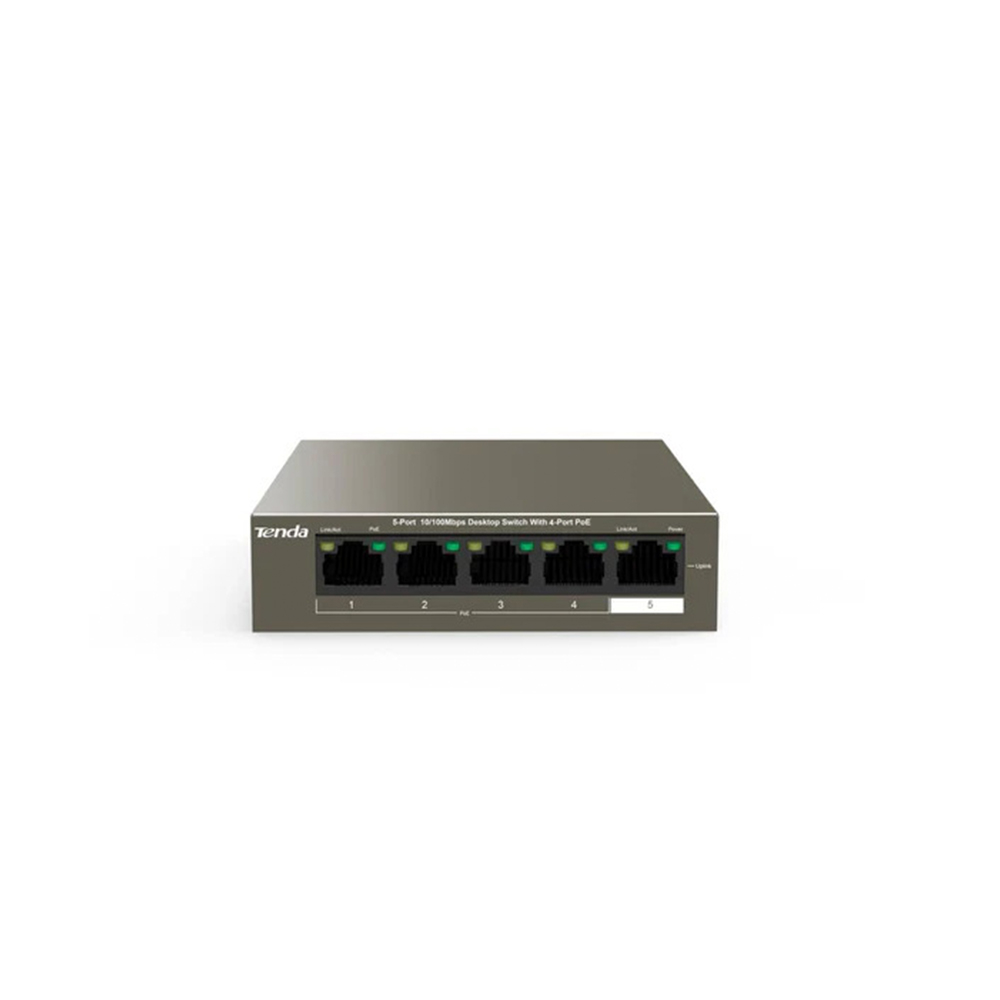

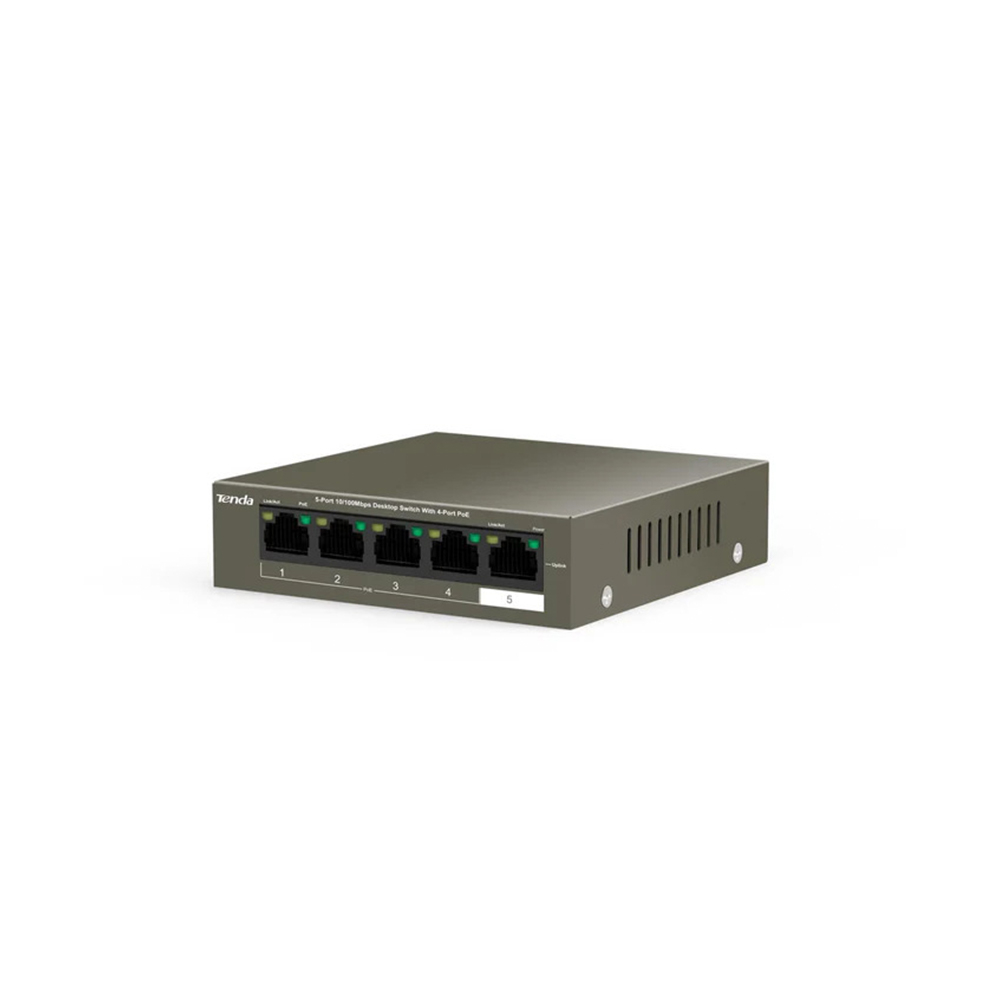

Tenda 5-Port 10/100 Desktop Switch 4-Port PoE – TEF1105P-4-63W

Dual uplink port, more convenient for connecting Router and NVR

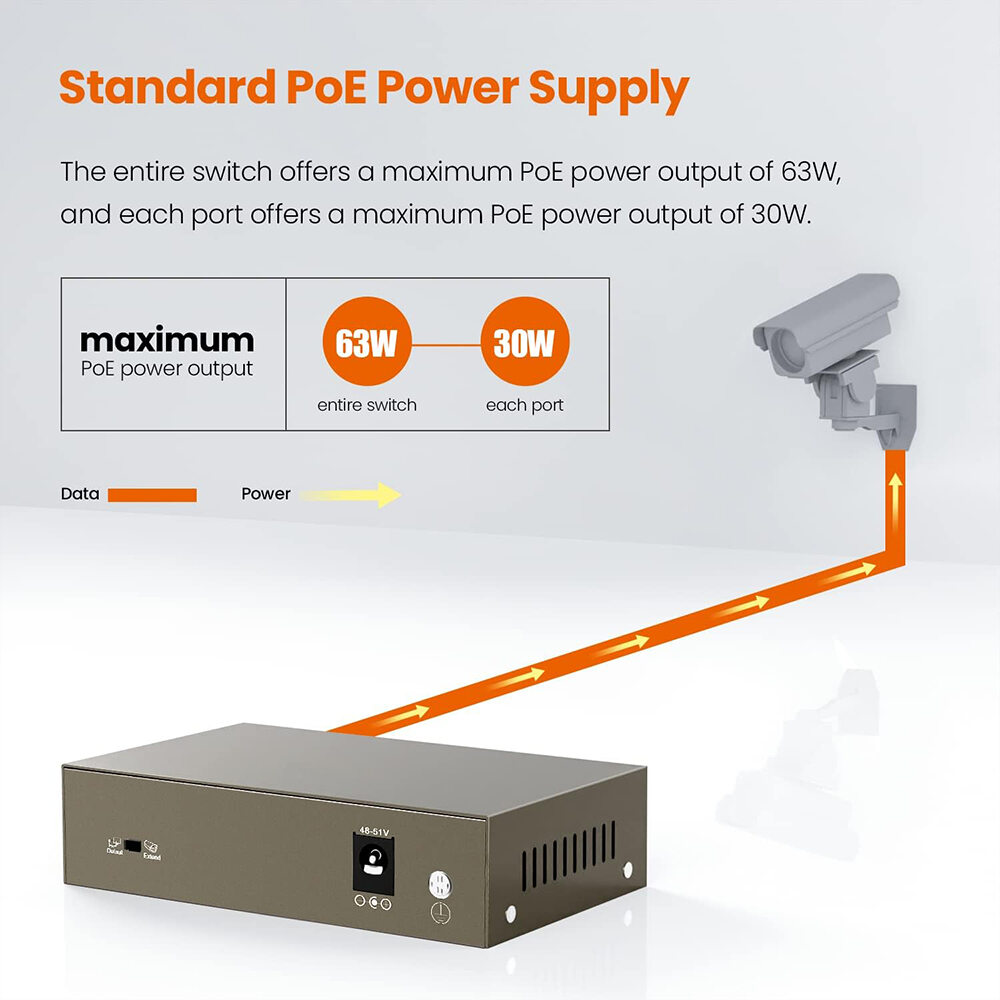

Tenda TEF1105P-4-63W is an unmanaged PoE Switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63W, and 30W for a single port. TEF1105P-4-63W is an ideal choice for SMBs, supermarkets, and restaurants with small-sized video surveillance requirements.

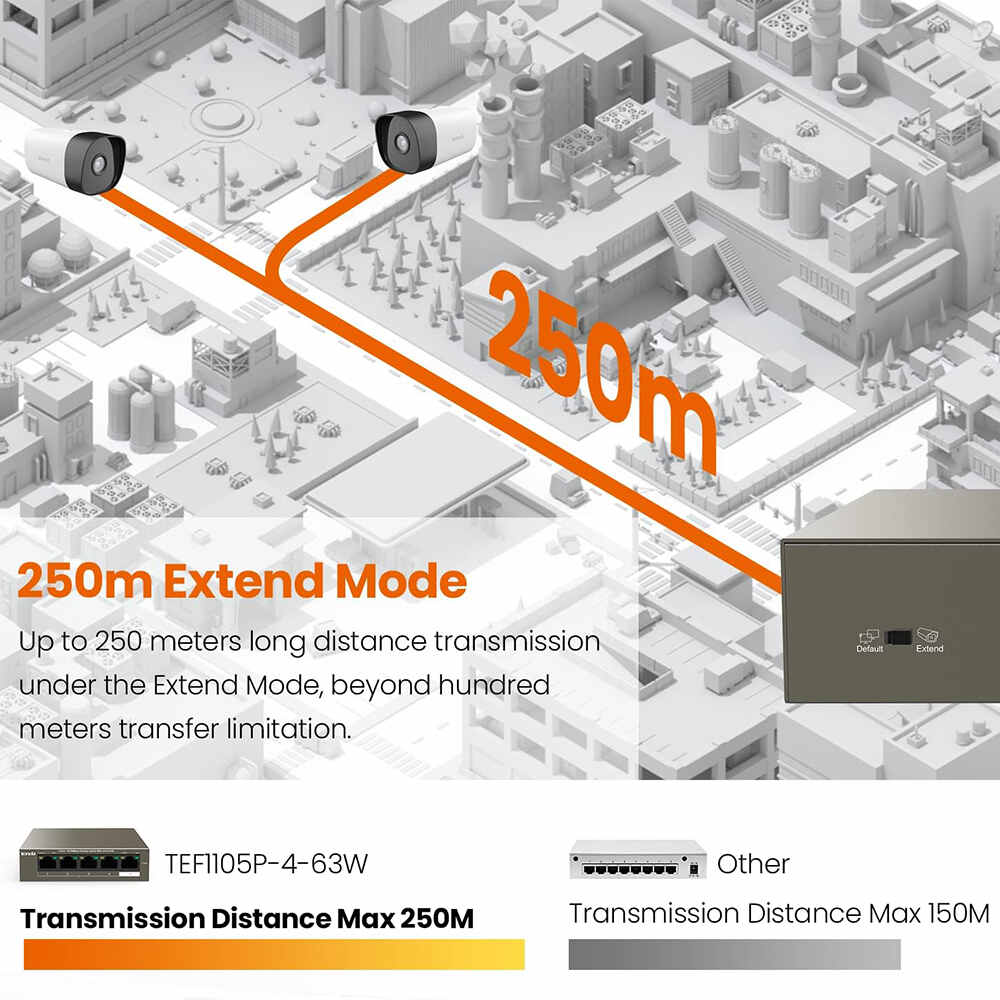

Up to 250 meters long-distance transmission under the Extend Mode, beyond hundred meters transfer limitation

Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than a hundred meters. TEF1105P-4-63W can support 250 meters of data transmission in the Extend mode, which can save the cost of your project with less devices used.

Excellent lightning Protection

Tenda TEF1105P-4-63W supports professional lightning protection of 6KV for uplink ports & 4KV for power, which can protect the switch from the inductive lightning strike coming from the thunderstorm weather.

QoS Priority design makes the key video data to be prioritized

1-2 ports support QoS Priority function, and it will prioritize them when meeting network congestion, which can ensure the network stable and fluent transmission of the surveillance video without breaking up.

Specifications

Hardware Features

Standards & Protocols: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Switching capacity: 1Gbps
Throughput: 0.74Mpps
Dimensions (W × D × H): 100mm*100mm*26mm
Lightning protection: 6KV
Indicators: Link/Act , PoE Status, Power

Interfaces:
4 10/100Mbps RJ45 Ports(Data/PoE)
1 10/100Mbps RJ45 Ports(Data)
(Auto Negotiation/Auto MDI/MDIX)

Capacity
Wire-speed forwarding: Support
Forwarding mode: Store-forward and cut-through
Mac Address Table: 1k

PoE Supply
Port 1 to Port 4 support standard IEEE802.3at/af
power( maximum power for each port is 30W)，
PoE power type is end-span(12+, 36- and 45+, 78- line pair)

Input Voltage
AC：100-240V~50/60Hz
DC：51V /1.25A（Power Adapter Output）

Power consumption:
In full configuration：<63.7W
Power Supply：57.8W

Environment:
Operating Temperature: 0℃~40℃(32℉~104℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

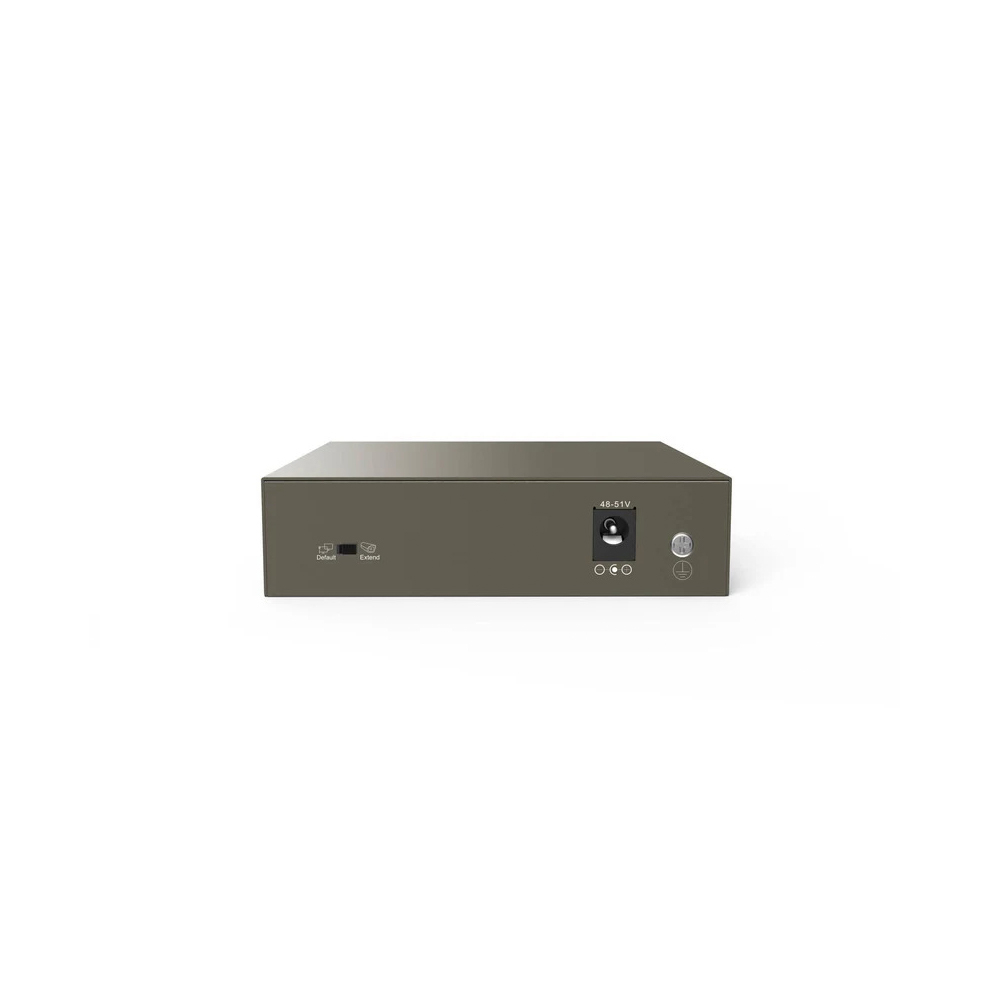

One-key mode:
Standard: the switch functions as a common unmanaged switch and all
the ports of the switch can communicate with each other.
Extend Mode: If the extend mode is enabled, the transmission distance of both
power and data will extend up to 250m(10Mbps), this function can replace the
extender and parts of the Fiber. It will extend the distance of the whole system
and save the cost of the project.

Certification:
Input Voltage AC：100-240V~50/60Hz
DC：51V /1.25A（Power Adapter Output）
FCC, CE, RoHS
