IP-COM ProFi 802.11AX Dual-Band Wi-Fi 6 Long Range Access Point
The Pro-6-LR is designed based on the new Wi-Fi 6 technology. It realizes a bandwidth of 160 MHz and a 5 GHz rate as high as 2.4 Gbps, a rate three times higher than that of ordinary Wi-Fi 5 APs and two times that of ordinary Wi-Fi 6 APs. The application of such new technologies as OFDMA, spatial multiplexing, and MU-MIMO drives the network capacity of a single Pro-6-LR to 4 times higher. The high-power RF design helps maintain the quality of Wi-Fi signal even over a long distance, so that wireless clients and AP can work under the high-performance Wi-Fi 6 mode. Pro-6-LR is a perfect choice for such locations as businesses and hotels to deploy high-performance Wi-Fi networks. ProFi Controller makes it easy to manage and monitor the whole ProFi series in a real-time manner and cloud services enable a remote and secure access free from the restrictions of device location.
R2199,00 Retail Price
3 Gbps Wi-Fi, 2.5 Times Higher Rate
Both the 2.4 GHz and the 5 GHz radio bands support the new Wi-Fi 6 standard and the concurrent Wi-Fi rate is as high as 3 Gbps, 2.5 times that of the last-generation of AP (AC1200).
Higher System Capacity
Supporting OFDMA, SR, and MU-MIMO, 802.11ax greatly improves the system capacity compared with the last generation 802.11ac. With the TWT technology, AP can uniformly schedule the wakening and sleep of clients, significantly reducing client conflicts and unnecessary wakeups, and therefore is suitable for high-density crowd scenarios where large numbers of clients are deployed.
More Than 20% Wider Wi-Fi Coverage
With the long OFDM symbol transmission mechanism and 2 MHz narrowband transmission, the 802.11ax protocol significantly reduces packet loss rate and noise interference, and improves the receiving sensitivity of clients. In addition, Pro-6-LR adopts a high-specification RF amplifying circuit, greatly widening the Wi-Fi coverage.
Strong Anti-Interference Capability
Supporting BSS coloring, dynamic CCA threshold and power control, the 802.11ax protocol significantly reduces the channel interference in high-density scenarios and improves the utilization rate of spectrum resources, improving the anti-interference capability compared with 802.11ac.
Enhanced Security
The Wi-Fi 6 AP supports the new-generation WPA3 Wi-Fi encryption protocol. Under the WPA3 encryption protocol, even the simple password cannot be cracked, greatly enhancing the security of Wi-Fi networks.
Intelligent Roaming Protocol
Supporting the intelligent roaming technology based on the 802.11kv protocol, Pro-6-LR enables wireless clients to automatically connect to AP with a better signal, effectively enhancing the user experience.
Standard PoE Supported, Easy Installation and Deployment
The efficient components and excellent hardware design guarantee the standard 802.3at power supply to 802.11ax dual-band gigabit AP, making installation and deployment simpler.
Centralized Management
The ProFi Controller makes it easy to manage and monitor the whole ProFi series in a real-time manner and cloud services enable a remote and secure access free from the restrictions of device location.
| Product Information | |
|---|---|
| Model | Pro 6 LR |
| Category | Ceiling |
| Dimensions | Φ250.6*55 mm |
| Hardware Specifications | |
| Frequency band | 2.4 GHz, 5 GHz |
| Wireless standards | IEEE 802.11a/b/g/n/ac/ax |
| 2.4 GHz data rate | 1-574 Mbps |
| 5 GHz data rate | 6-2402 Mbps |
| Channel width | 20 MHz/40 MHz/80 MHz/160 MHz |
| MU-MIMO | 2X2 MU-MIMO |

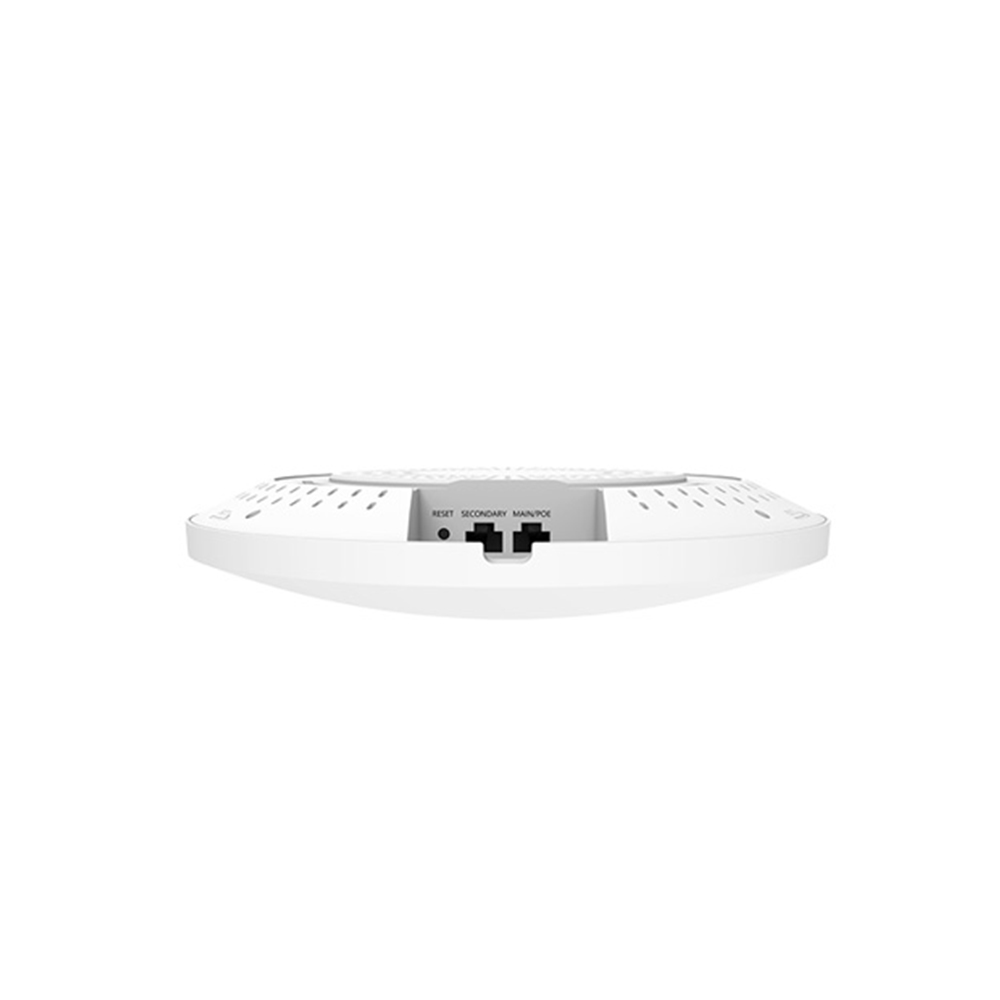

| Ethernet port | One 10/100/1000 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1*Reset |
| LED indicator | RGB |
| Max. power consumption | 15.74 W |
| Power supply standard | IEEE 802.3at PoE |
| Concurrent clients | 254 |
| Antenna gain | 4*4 dBi |
| 2.4 GHz Max. output power | 29+/-1.5 dBm |
| 5 GHz Max. output power | 29+/-1.5 dBm |
| 802.11b RX sensitivity | -97 dBm |
| 2.4 GHz 802.11n (MCS7) RX sensitivity | -75 dBm |
| 5 GHz 802.11a RX sensitivity | -95 dBm |
| 5 GHz 802.11n (MCS7) RX sensitivity | -75 dBm |
| Software Specifications | |
| Operating mode | AP |
| Hide SSID | Supported |
| Max. No. of SSID | 2.4 GHz: 7 5 GHz: 4 |
| OFDMA | Supported |
| Beamforming | Supported |
| TWT | Supported |
| 802.11 k/v | Supported |
| WEP | Supported |
| WPA-PSK | AES/TKIP |
| WPA2-PSK | AES/TKIP |
| WPA3-ASE | AES |
| WPA | Supported |
| WPA2 | Supported |
| Access control | MAC address-based |
| Adjustable power transmit | Supported |
| Frequency analysis | Supported |
| AP isolation | Supported |
| Connected clients control | Supported |
| RSSI threshold | Supported |
| VLAN tagging for SSID | Supported |
| LED indicator control | Supported |
| Diagnostics tool | Ping, Traceroute |
| Scheduled reboot | Supported |
| Reboot at specified interval | Supported |
| System logs | Supported |
| Firmware upgrade | Supported |
| Reboot | Supported |
| Reset | Supported |
| Backup configuration | Supported |
| Restore configuration | Supported |
| Operating Environment | |
| Default login IP address | 192.168.0.254 |
| Default user name | admin |
| Default password | admin |
| Operating temperature | -10℃ – 45℃ |
| Operating humidity | (10% – 90%) RH, non-condensing |
| Storage temperature | -30℃ – 70℃ |
| Storage humidity | (10% – 90%) RH, non-condensing |
