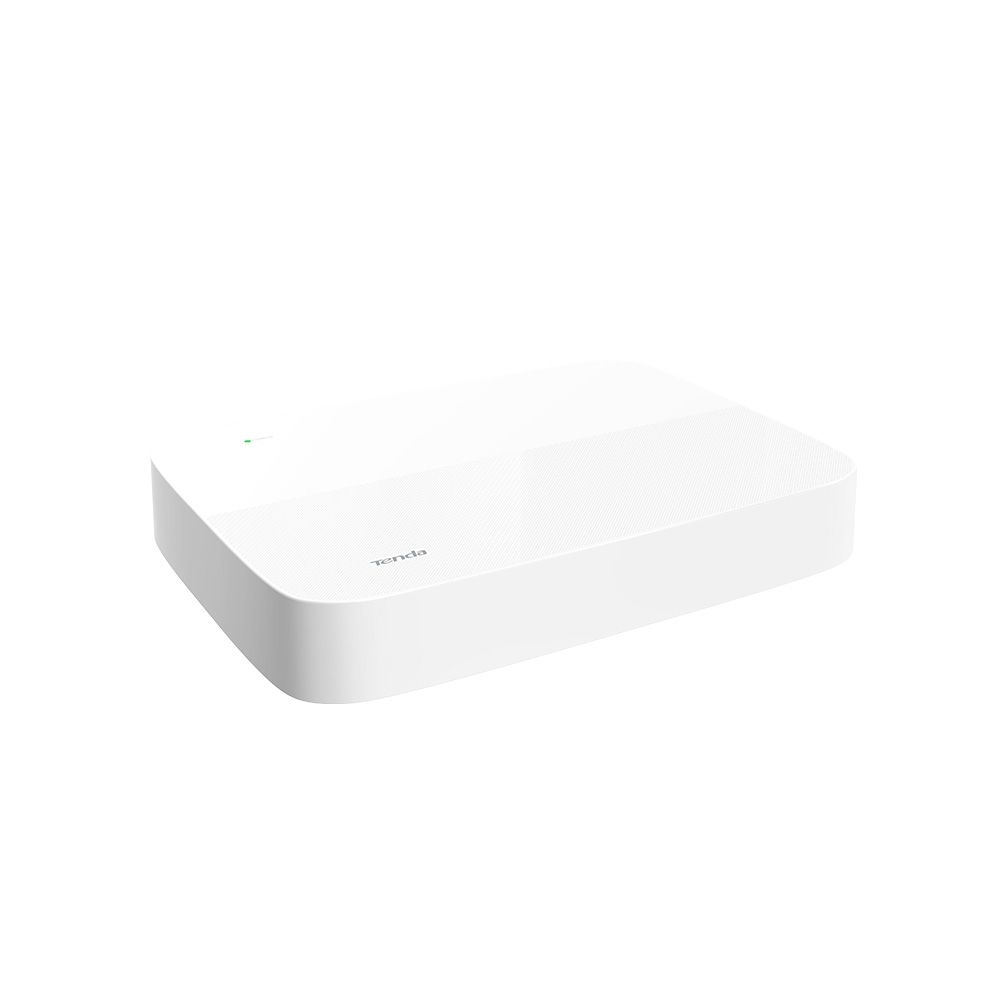

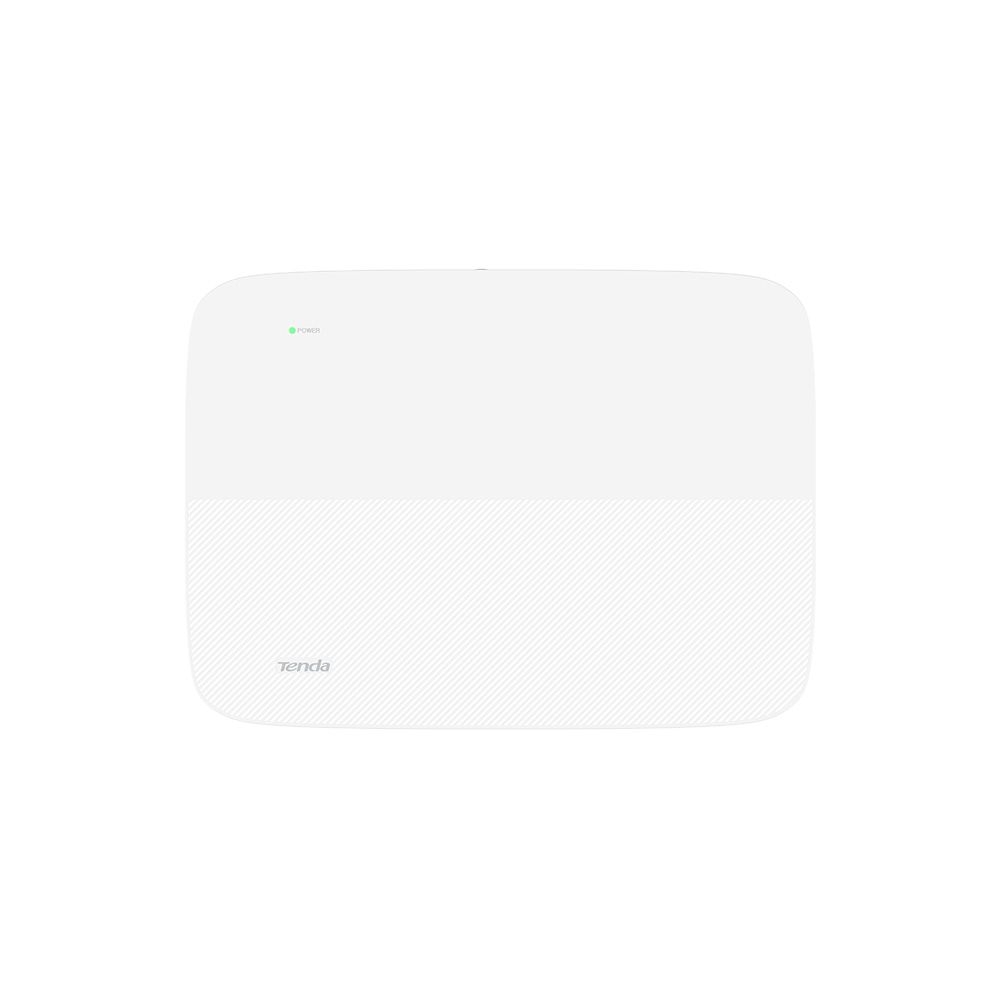

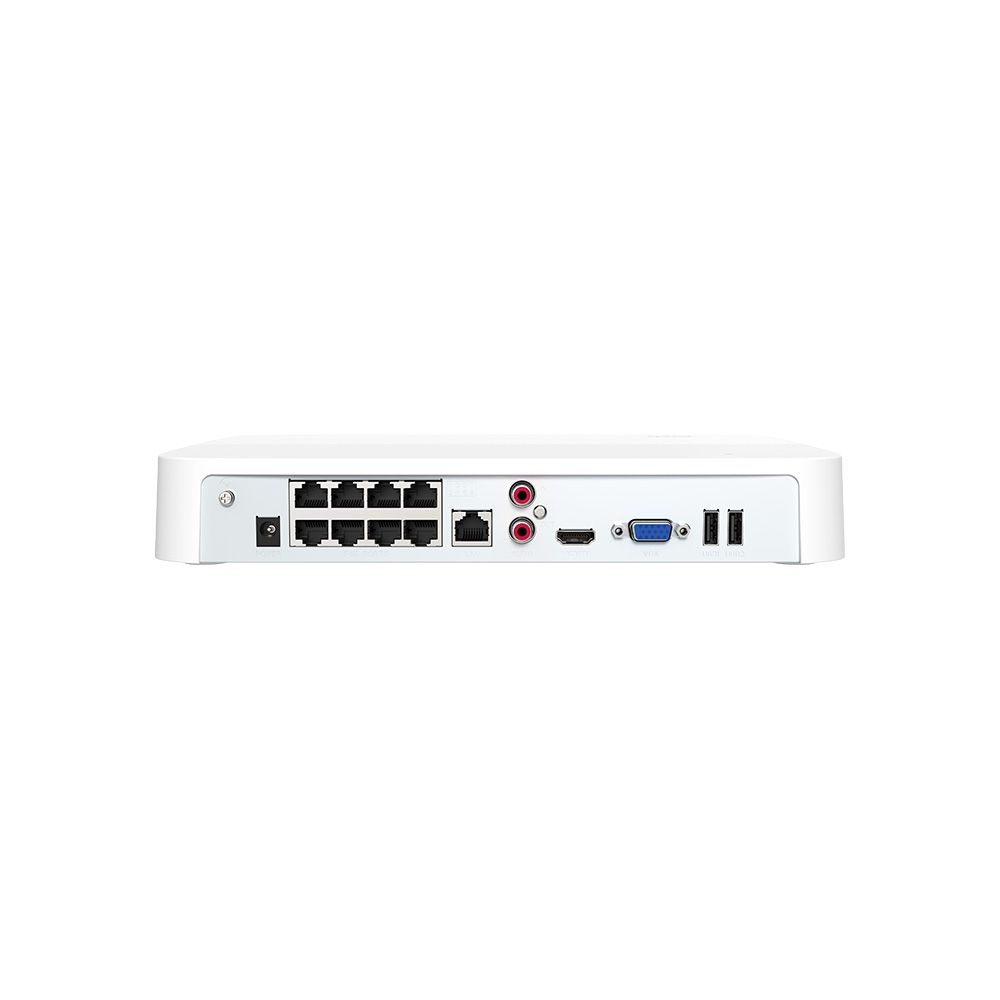

Tenda N6P-16H 16 Channel PoE HD Network Video Recorder
N6P-16H PoE HD Network Video Recorder supports PoE power supply, plug and play, 4K UHD recording and output, HDD bad sector isolation, channel cloud storage, H.265 high-performance video compression and monitor video viewing on TDSEE App. It is suitable for such scenarios as single-family houses, shops, restaurants, offices, factories and farms, providing you efficient and convenient monitoring management.
- Delivery & Return
Delivery Coverage
We deliver nationwide across South Africa through trusted courier partners. Deliveries are made to physical addresses only — no P.O. Boxes or postal addresses.
Delivery Times
Delivery Cut Off: 12:00 AM
Transit Time: 3 working days
Order are shipped Monday – Friday only.
Shipping Costs
Flat Rate: R100
Free delivery on orders above R500
Free local pickup
Our general delivery policy found here: Delivery Policy
Return
- We offer a 7-day return window starting from the date the client receives the order.
 Our general return policy can be found here: Return Policy
Help
Give us a shout if you have other questions and/or concerns.
Email: info@newspirit.co.za
Phone: +27 (011) 314-8451 - Ask a Question
R2599,00 Retail Price
Power over Ethernet, 250m Long-Distance Transmission
The Network Video Recorder supports power supply and network transmission over a single Ethernet cable for up to 250m, eliminating the need for a switch, power adapter, or PoE relay, simplifying your monitoring setup.
4K UHD Monitoring Image Captures Clear and Delicate Details
A 4K UHD camera connected with a 4K high-definition HDMI output (with up to 3840 x 2160 resolution) will provide you with clear images with high detail, even when zoomed.

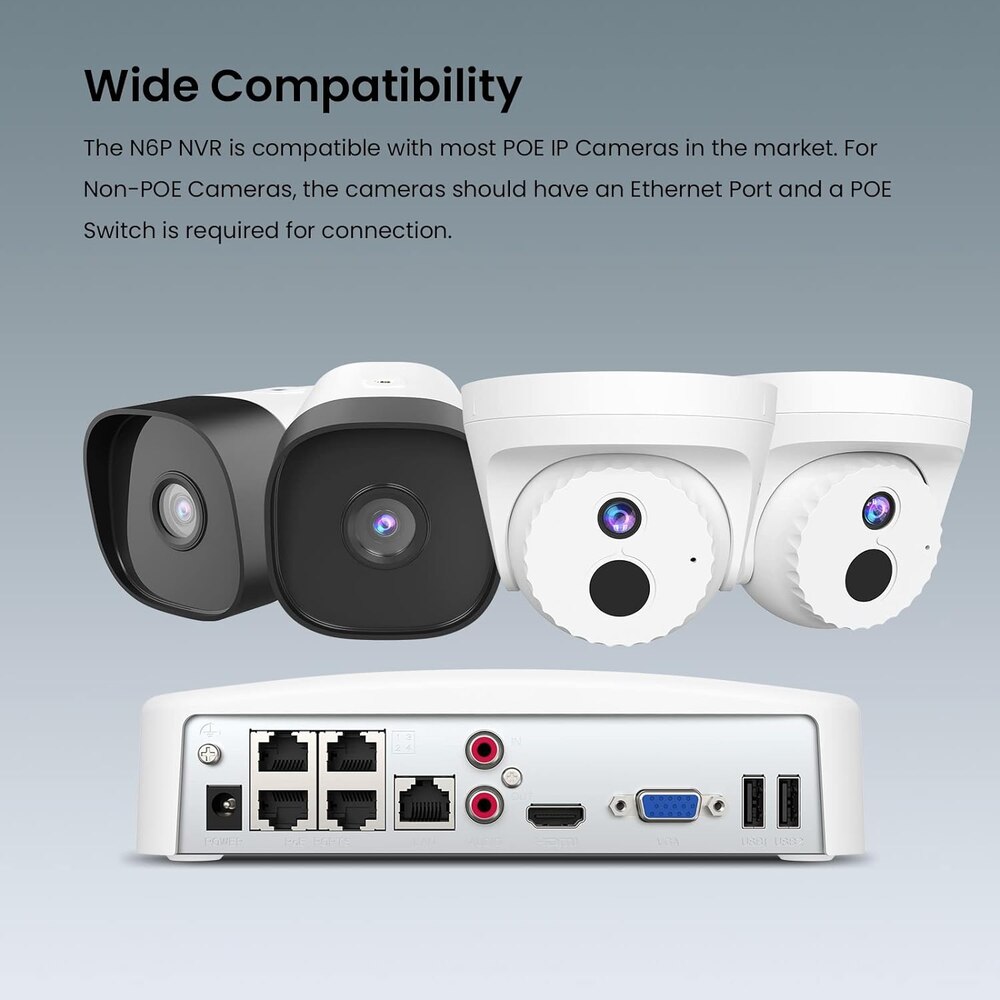

Plug & Play Without Further Configuration
The Tenda N6P-8H Network Video Recorder will automatically search and add any camera connected to the PoE port, enabling you to immediately view and monitor without further configuration
HDD Bad Sector Isolation for Stable Storage of Recordings
The Tenda intelligent file storage system can automatically detect, identify and skip bad sectors when storing recordings on the HDD, this makes your stored video data more reliable and more stable.
Dual Storage – HDD and Cloud Storage, Recording Safe and Backup
The Tenda N6P-8H Network Video Recorder supports a 10TB large capacity HDD for a longer recording periods and channel cloud storage, ensuring you never miss any important recording.
Highly Effective H.265+ Storage
Powered by H.265+ smart encoding and decoding technology, with high storage utilization and lower monitoring costs, your storage space and bandwidth is reduced by 50% when compared with H.265 encoding.
Smart Power Control, 4KV High Lightning Protection Standard
Equipped with a built-in smart power management chip to prevent over-run of the camera, and 4KV high standard lightning protection to improve system stability and extend service life.
Remote Alarm on TDSEE App
You can view and monitor videos on your mobile phone anytime and anywhere. Alarm messages are pushed to notify you of abnormal situations in real time.
Specifications:
| Product Code | N6P-16H |
| Video | |
| IP Video Input | 16-ch |
| IP Video Resolution | Up to 8MP |
| Input Bandwidth | 80 Mbps |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 10kΩ) |
| Video&Audio Output | |
| HDMI Output | 1-ch, 4K(3840×2160)/30Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz |
| VGA Output | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI/VGA simultaneous output |
| Output Bandwidth | 80 Mbps |
| Audio Output | 1-ch, RCA (2.0 Vp-p, 10kΩ) |
| Video&Audio Decoding | |
| Video Decoding Format | H.265+, H.265, H.264+, H.264 |
| Audio Decoding Format | G.711A, G.711U, G726 |
| Recording Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 |
| Decoding Capability | 4-ch@1080P(30 fps) |
| Stream Type | Video, Video & Audio |
| Recording Management | |
| Record Mode | Normal, Alarm |
| Playback Mode | Instant, Channel, File, Tag |
| Sync Playback | Up to 8-ch |
| Backup Mode | USB device |
| Network Managemant | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Network Protocol | HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS |
| Mobile Client | Supports iOS, Android |
| Web Browser | Plug-in free live view : Chrome, Edge, Opera |
| PoE | |
| PoE Port | 8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports |
| PoE Standard | IEEE 802.3at/802.3af |
| PoE Power | ≤70 W |
| HDD Storage | |
| HDD Interface | 1 SATA 3.0 interface |
| Capacity | Up to 10 TB capacity for each HDD |

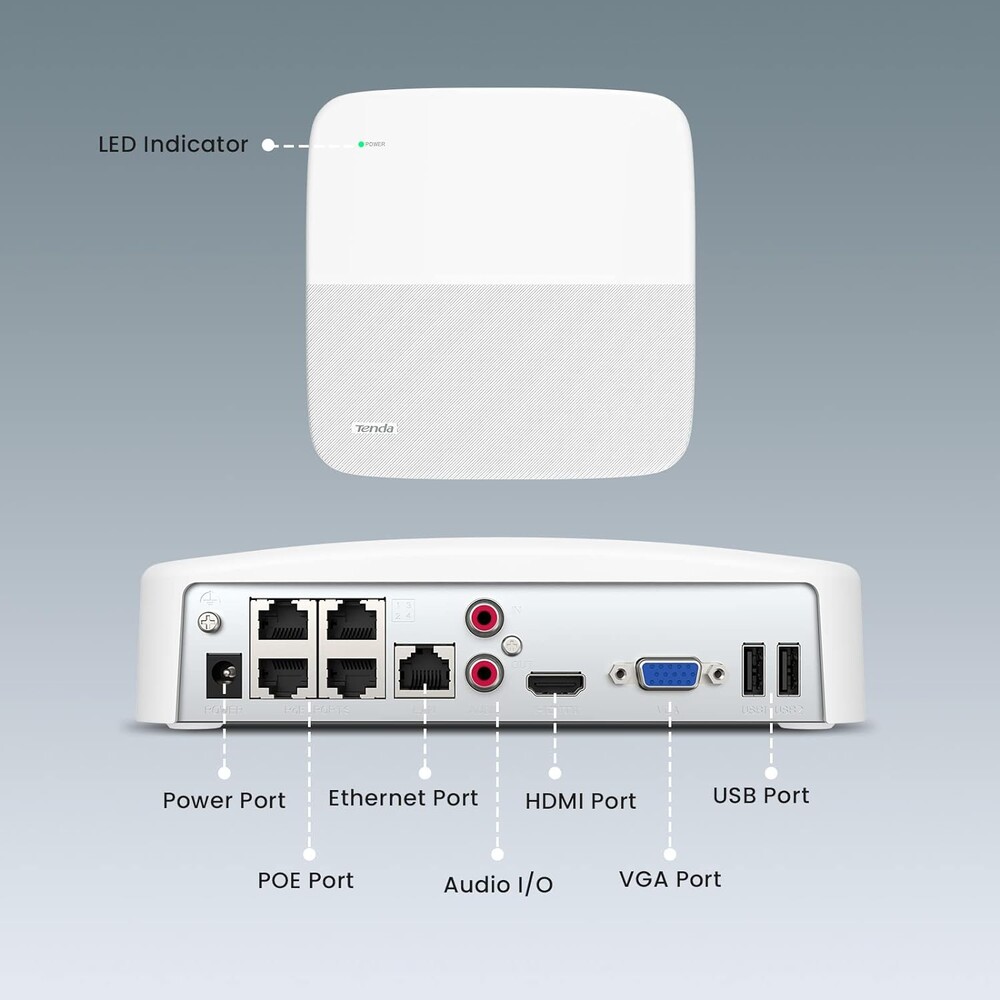

| External Interface | |
| USB Port | 2 x USB 2.0 |
| General | |
| Power | 48 VDC, 1.875 A |
| Dimension | 284 mm x 207 mm x 43 mm (11.2 ” x 8.2 “x 1.7 “) |
| Weight (Without HDD) | 780 g (1.72lb) |
| Certification | CCC, CE, FCC, RoHS |
| Installation Method | Desktop mounting, wall mounting |
| Temperature | Operating Temperature: 0°C – 40°C (32°F – 104°F) |
| Storage Temperature: -30°C – 70°C (-22°F – 158°F) | |
| Humidity | Operating Humidity: 10% – 90% RH (non-condensing) |
| Storage Humidity: 5% – 95% RH (non-condensing) | |
