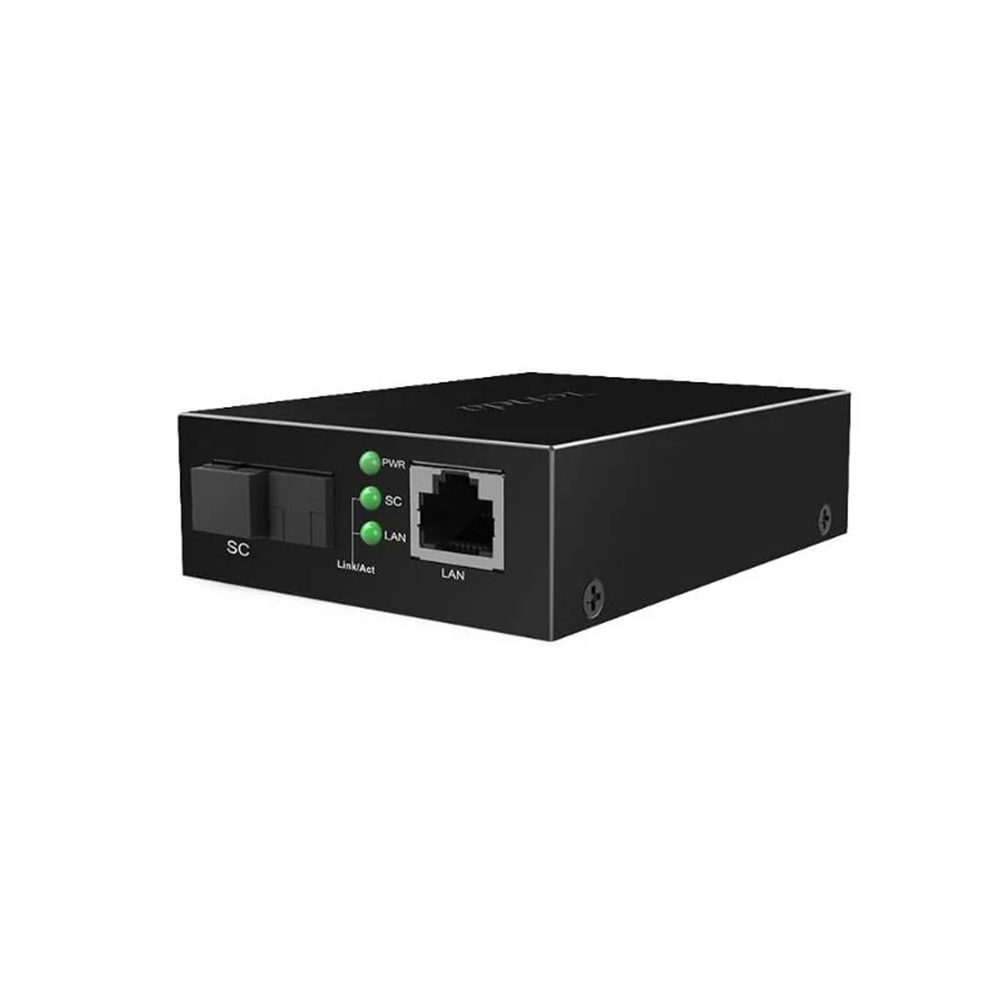

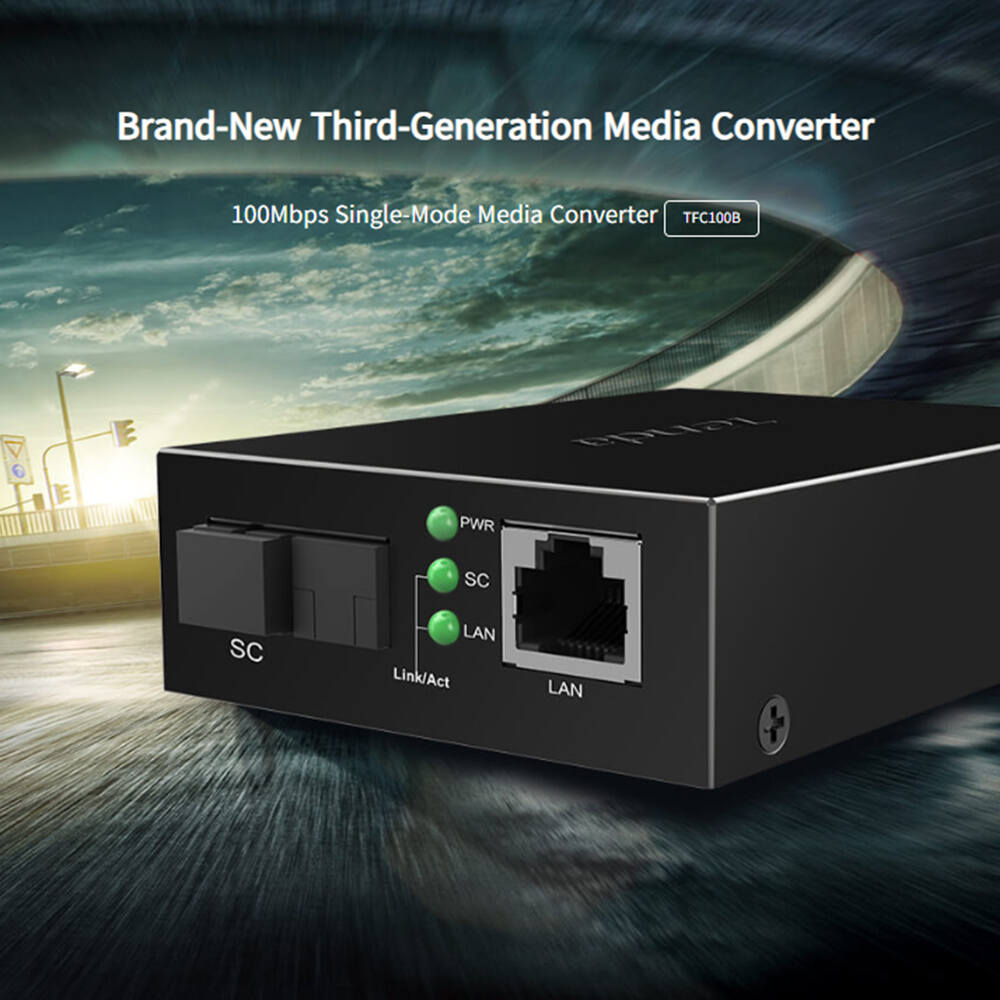

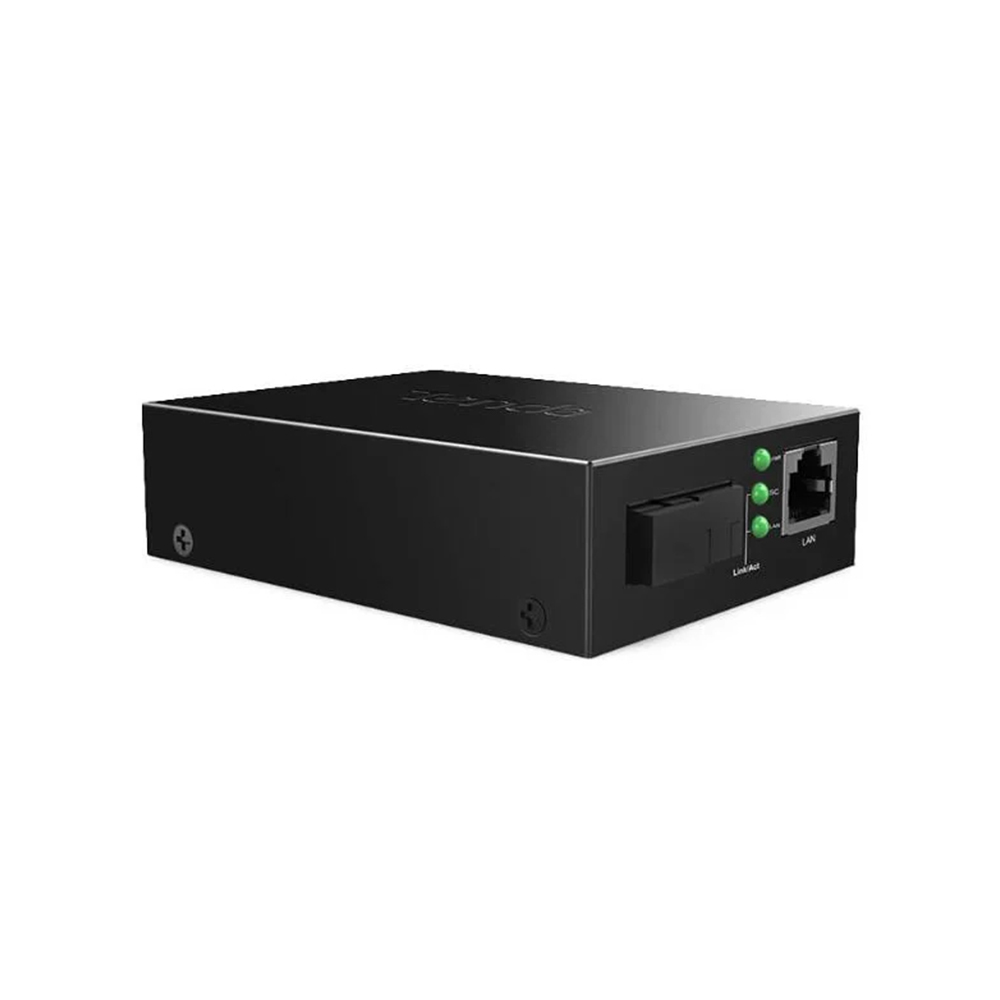

Tenda 100Mbps Single-Mode Media Converter – TFC100A
The Tenda TFC100A is a 100Mbps single-mode & single-fibre media converter, which can implement a mutual conversion between electrical signals and optical signals. This type of fibre converter can extend the transmission distance of a network through optical fibre. The TFC100A adopts the technique of WDM, which can enable the SC optical interface to transmit a signal through single-mode and single-fiber. The SC optical interface has a transmission distance of up to 20km and can send a wavelength of 1550nm (1310nm) and receive a wavelength of 1310nm (1550nm). With a data rate of 100Mbps, this device meets the wired transmission requirements of hotels, universities and businesses.
R349,00 Retail Price

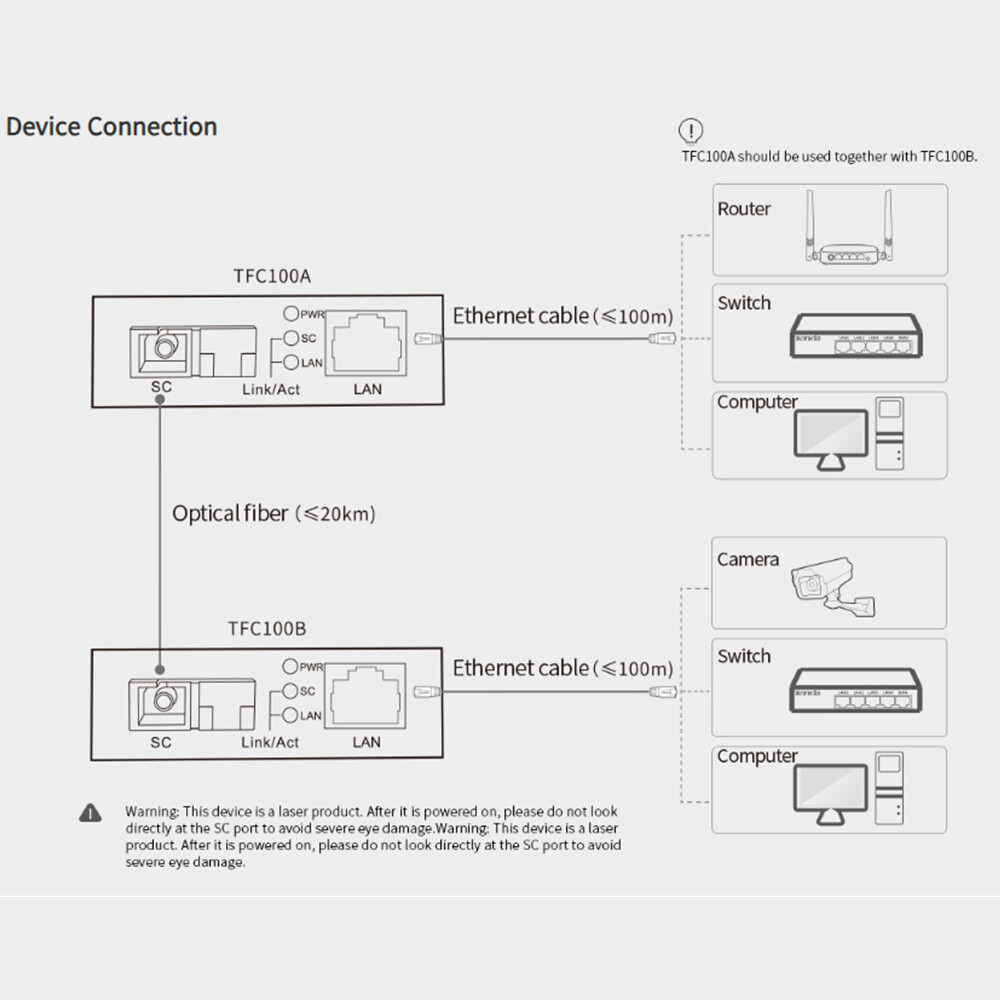

Difference between A / B Model
TFC100A –
Transmit:1550nm
Receive:1310nm
TFC100B –
Transmit:1310nm
Receive:1550nm

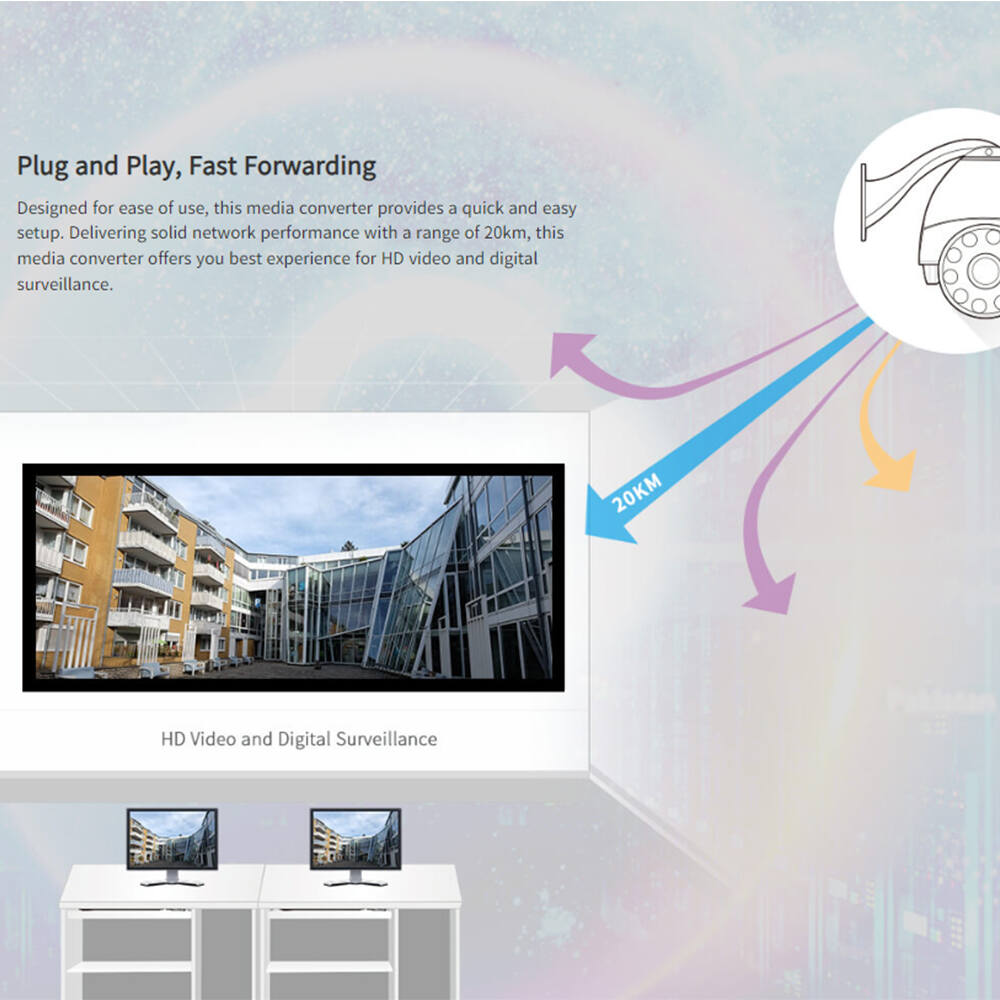

Seamless Long Distance Data Transmission
The Tenda TFC100A-B Single-Mode Media Converter is your solution for seamless data transmission over long distances. This converter offers the convenience of plug-and-play, requiring no complex configurations. It ensures high-speed, lossless 20km transmission, guaranteeing a smooth experience for HD video streaming and digital monitoring applications.

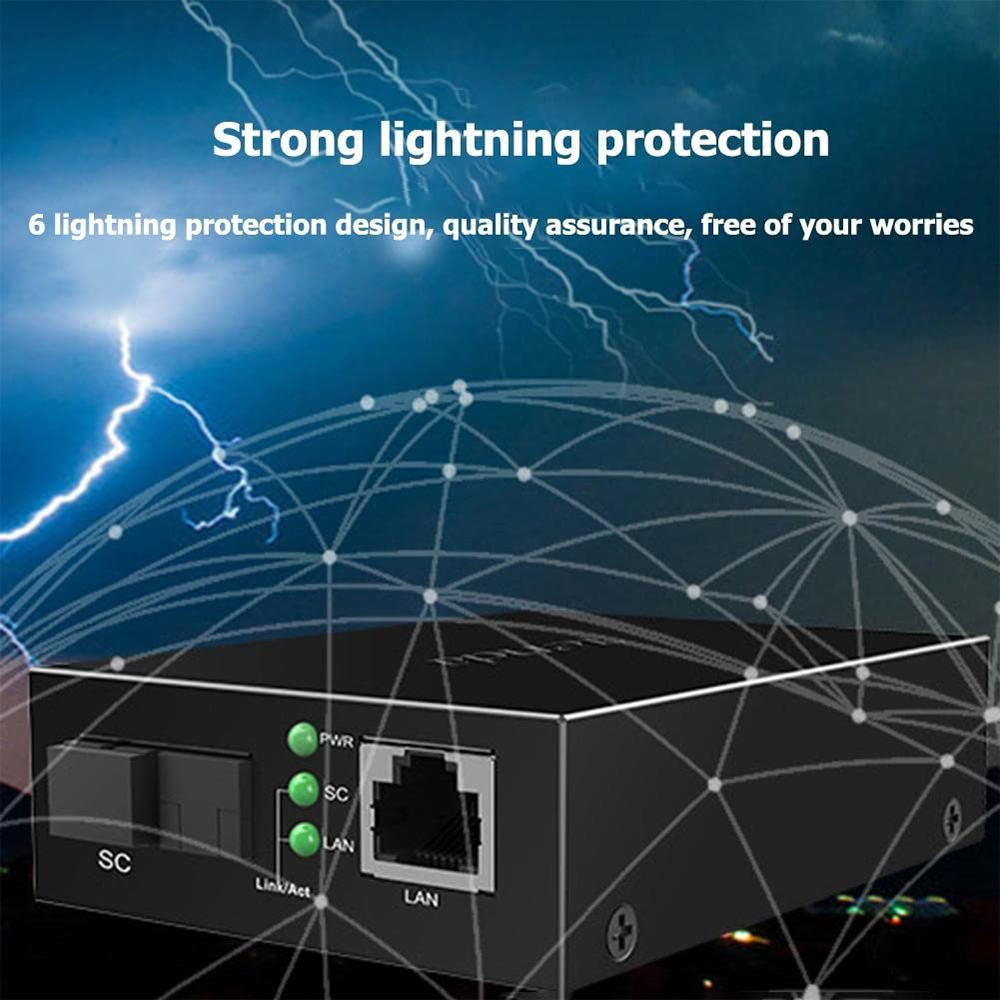

6kv Thunder Protection
Safety is a top priority, as evidenced by the 6kV thunder protection design, which safeguards your equipment from electrical surges and ensures uninterrupted operation.

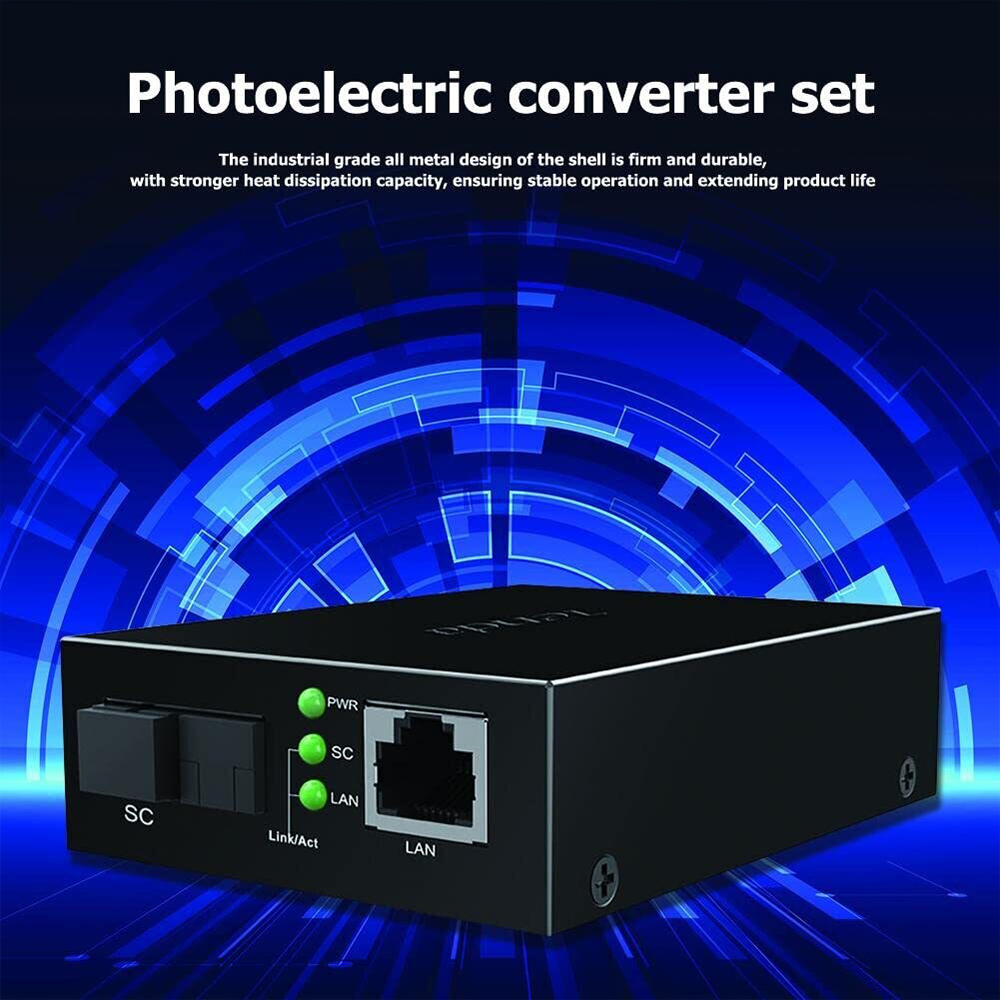

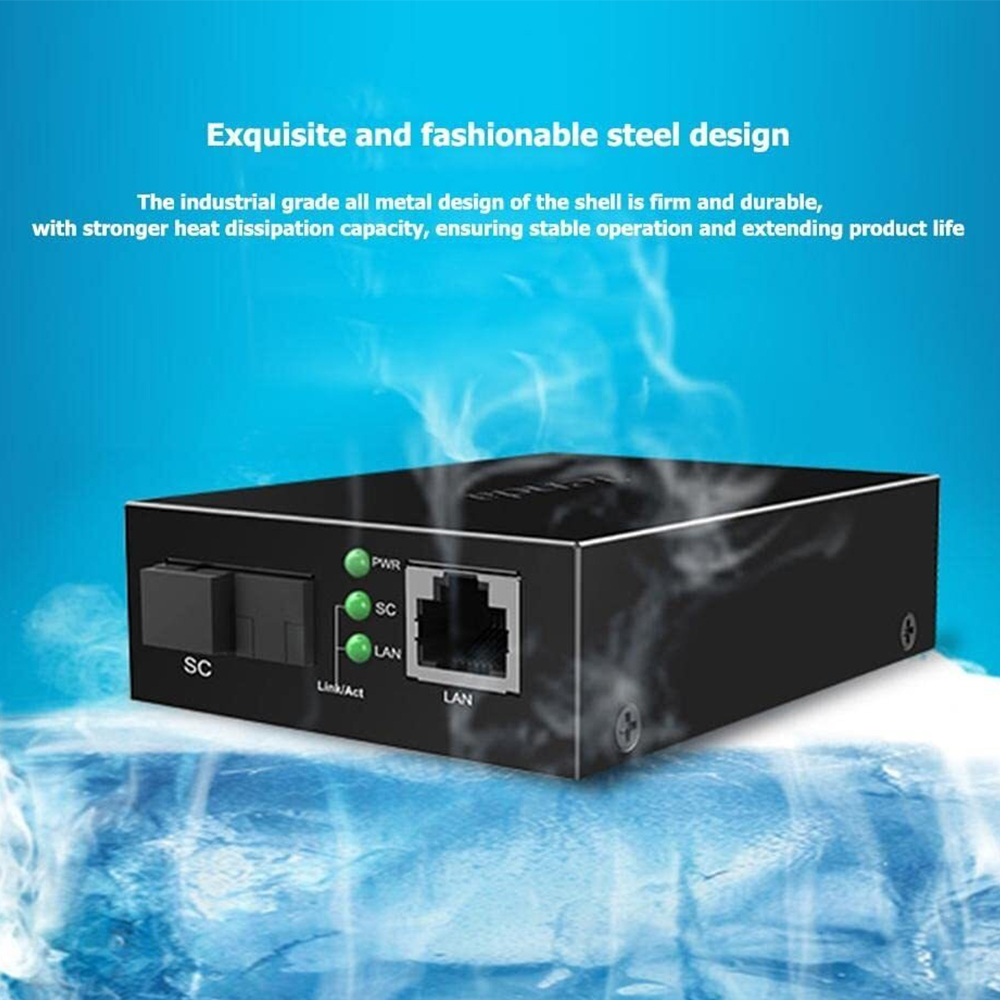

Industrial Grade Design
The industrial-grade, all-metal shell design enhances durability while providing superior heat dissipation capabilities, allowing for stable and reliable performance even in demanding environments. This design also contributes to an extended product life.
Versatile Connectivity
Whether you’re connecting PCs, laptops, or other devices, the Tenda TFC100A-B Single-Mode Media Converter delivers dependable and efficient fiber optic connectivity.
Specifications
LED indicators:
1 Power LED indicator for each device
1 Link/Ack LED indicator for SC port
1 Link/Ack LED indicator for LAN port
Interfaces: 1*100Mbps RJ45 port 1*100Mbps SC ports
Operating wave length:
Transmit: 1550nm
Receive: 1310nm
Transmission distance: 20km
Input voltage: 100-240V～ 50/60Hz

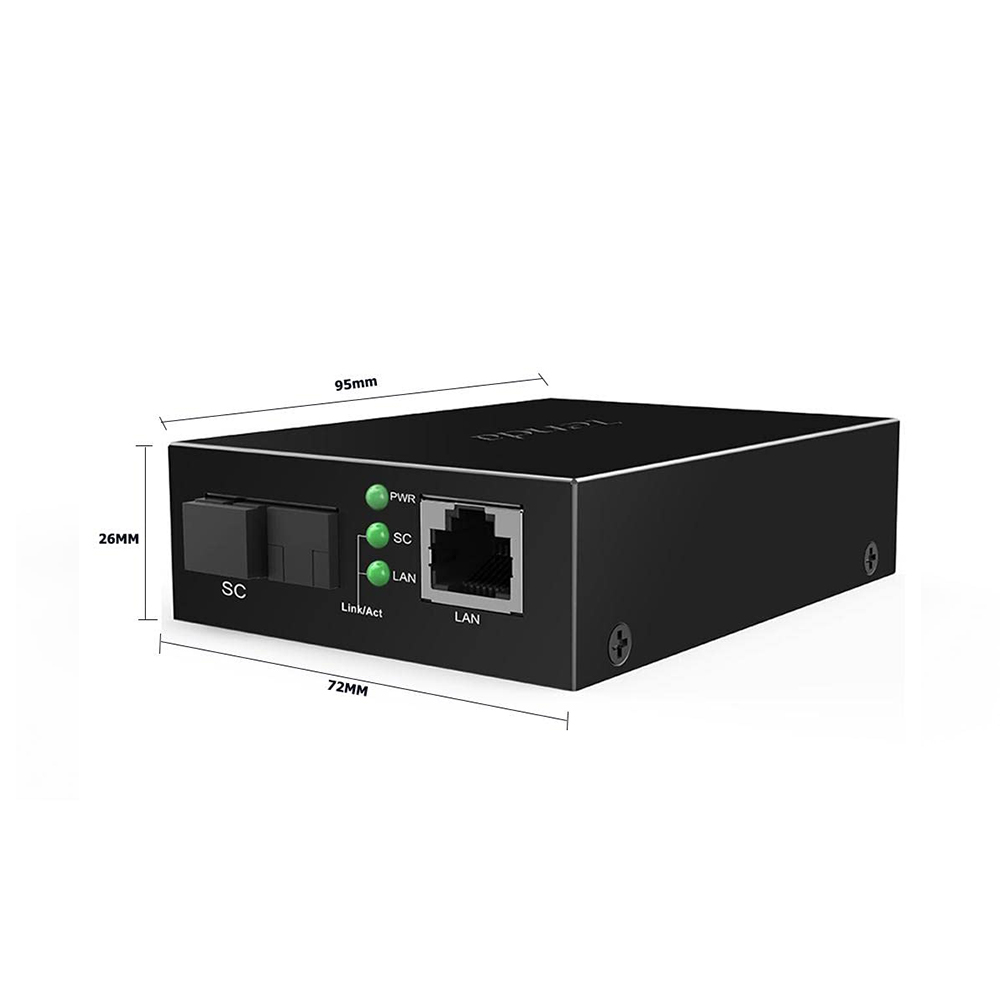

Dimensions: 95 mm * 72 mm * 26 mm(L*W*H)
Operating environment:
Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%)RH, non-condensing
Storage humidity: (10% – 90%)RH, non-condensing
